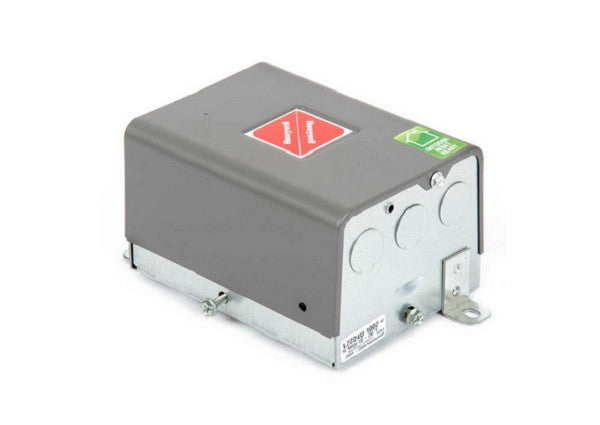

120 Vac Oil Electronic Aquastat

Please note there will be no return allowed on control's NO EXCEPTIONS Thanks

Specs
Application:
Oil Aquastat Controller
Temperature Range (F):
110°F to 220°F
Electrical Rating:
44.4 A inrush
Circulator: 7.4 A @ 120 Vac
Burner: 7.4 A @ 120 Vac
Differential:
Adjustable
Max Temp Differential:
25°F
20°F
Differential:
10° to 25°F (Low Limit)
5° to 20°F
Min Temp Differential:
5°F
10°F
Height:
7-1/8"
Width:
4-1/4"
Depth (Inches):
2-5/8"
Operating Humidity:
0% to 95% (non-condensing)
Min Ambient Temp (°F):
-30 F
Max Ambient Temp (°F):
150 F
Mount:
Flush
Horizontal
Vertical
Voltage:
120v
Frequency:
60 Hz
Max Power Consumption:
2000 VA


Description:
Specifications

Burner Control Circuit at 120V (A): 7.4
Application: Hydronic Heating Systems, Domestic Hot Water Service
Differential: 130 to 240 F
Full Load Amps at 240VAC: 3.8
Full Load Amps at 120V: 7.5
Locked Rotor Amps at 120V:44.4
Mounting:Vertical
Temp. Range:5 to 20 F
Locked Rotor Amps at 240V:22.2

10° to 25°F (Low Limit)
5° to 20°F
Min Temp Differential:
5°F
10°F
Height:
7-1/8"
Width:
4-1/4"
Depth (Inches):
2-5/8"


Operating Humidity:
0% to 95% (non-condensing)
Min Ambient Temp (°F):
-30 F
Max Ambient Temp (°F):
150 F
Mount:
Flush
Horizontal
Vertical
Voltage:
120v
Frequency:
60 Hz
Max Power Consumption:
2000 VA
